Resistor Extraction

  • Icon: alt icon

  • Dock: Extraction

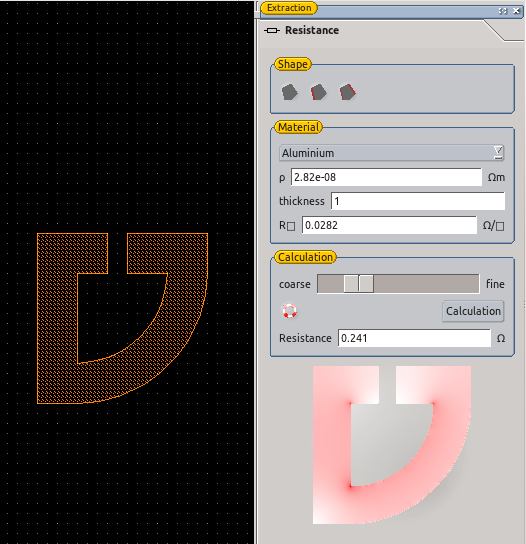

Using this feature the resistance of a single arbitrary shape can be extracted. Four steps are required to do this:

  • Choose a polygon eshape.png

  • Choose an input edge/port eport1.png

  • Choose an output edge/port eport2.png

  • Enter material data in the dock windows

The resulting resistance will be displayed. Also the electrical field density is shown.


The finite differences method is used to calculate electrical resistance. It is a two-dimensional calculation process. As three-dimensional parameter only the layer thickness from the LayerManager is used to calculate the square resistance from the specific resistance of the material. Any other 3-D geometry is not considered in the calculation. Any calculated resistances are for direct current only. No skin effects or other factors are considered.
